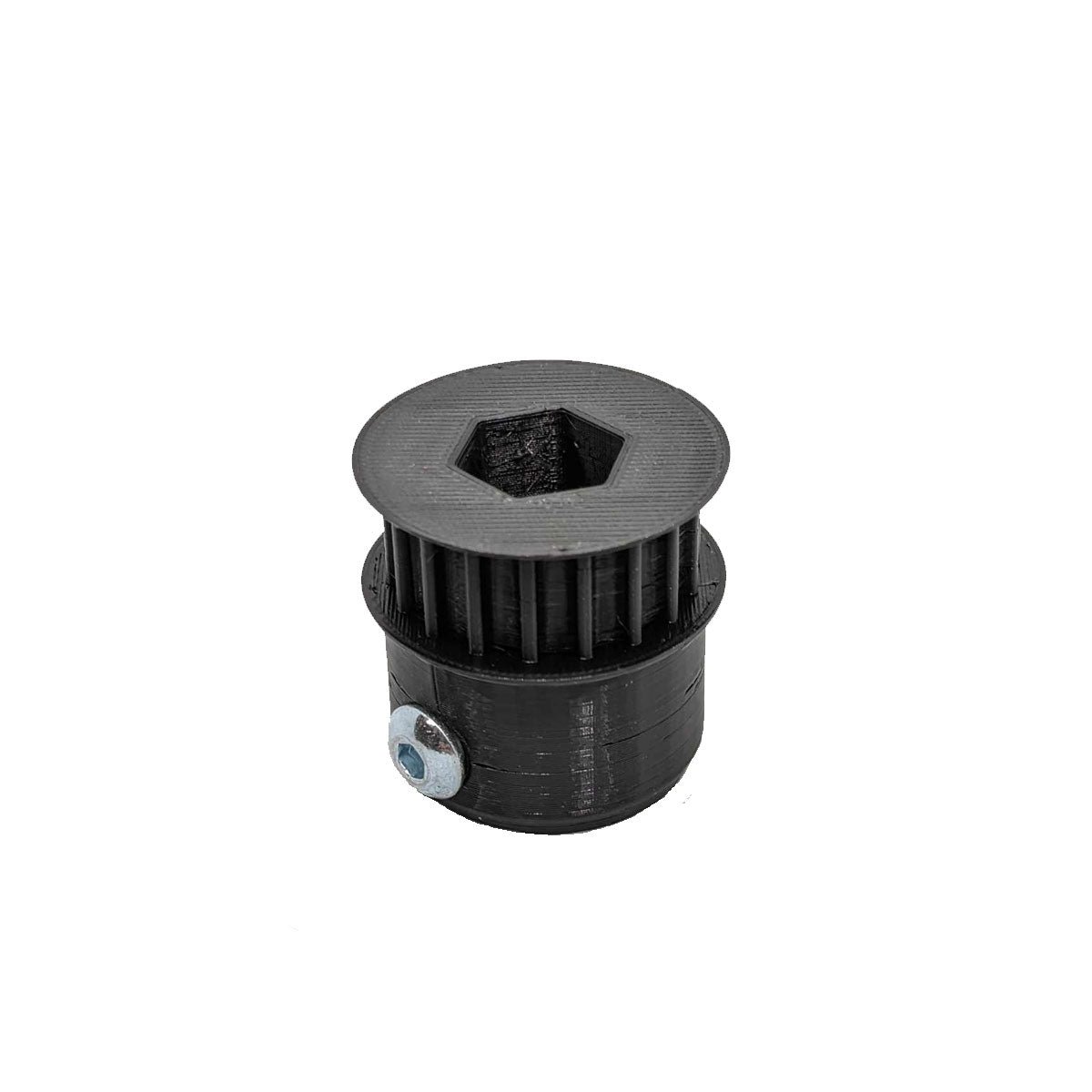

RoboRollerz End - 1/2 Hex Bore Thru 18t Pulley

RoboRollerz Roller End -  1/2 Hex Bore Thru 18t Pulley

For 1/2" Hex Bearing

Give your team the ability to pass a hex shaft all the way through you roller while driving it with an integrated 18t pulley! The RoboRollerz Hex allows you to make custom 1/2" Hex input shafts to meet your teams needs!

Designed for Light Load applications.

*Hex Shaft Not Included*

Why RoboRollerz?

The RoboBitz RoboRollerz are a lightweight carbon fiber composite roller system designed specifically for FRC. These rollers are typically 3/4 the weight of comparable products while being less expensive. Lighter, Stronger & Less Expensive? How could you say no?

Product Installation:

For competition use, we advise using Loctite 422 (McMaster P/N 74985A67) to add additional adherence to the inside of the roller.  Apply it inside the roller tube and insert the roller end making sure to line up the mounting holes.

Apply Loctite 242 (McMaster P/N 91458A112) to the #10-32 mounting screws and torque to 15in/lb.

For products RB-RR005 and RB-RR006 apply Loctite 242 (McMaster P/N 91458A112) to the end of the 3/8 shoulder bolt and torque to 20in/lb.

CAD Downloads:

RoboRollerz

Notes:

• This item is printed from high quality materials, however due to the nature of 3d printing there may be small blemishes that do not affect the performance of the product.
• Due to the nature of robotics competitions we can not offer a warranty against damaged components. We encourage teams to carefully consider the use case for these products.
