RoboRollerz Intake Kit
RoboRollerz Intake Kit
SKU:RB-RK002
Regular price
$244.99 CAD
Regular price
Sale price
$244.99 CAD
Unit price
/
per
In stock
The RoboRollerz Intake Kit
The Roller bundle to cover any Intake needs. In this bundle you receive:
3x RoboRollerz - Carbon Fiber Roller (RB-RR001)

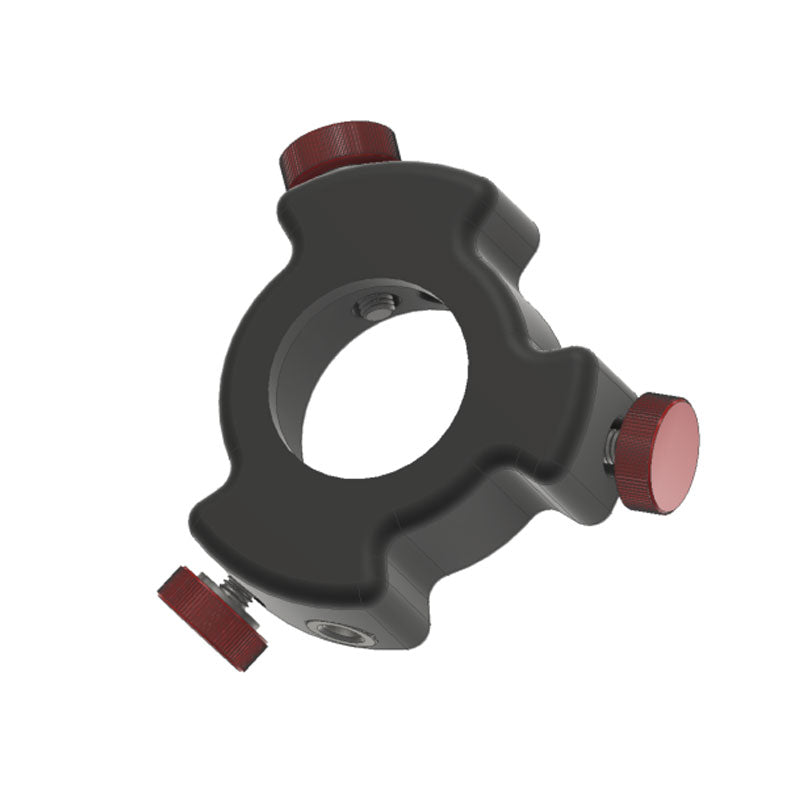

1x RoboRollerz - Drill Jig (RB-RR002)

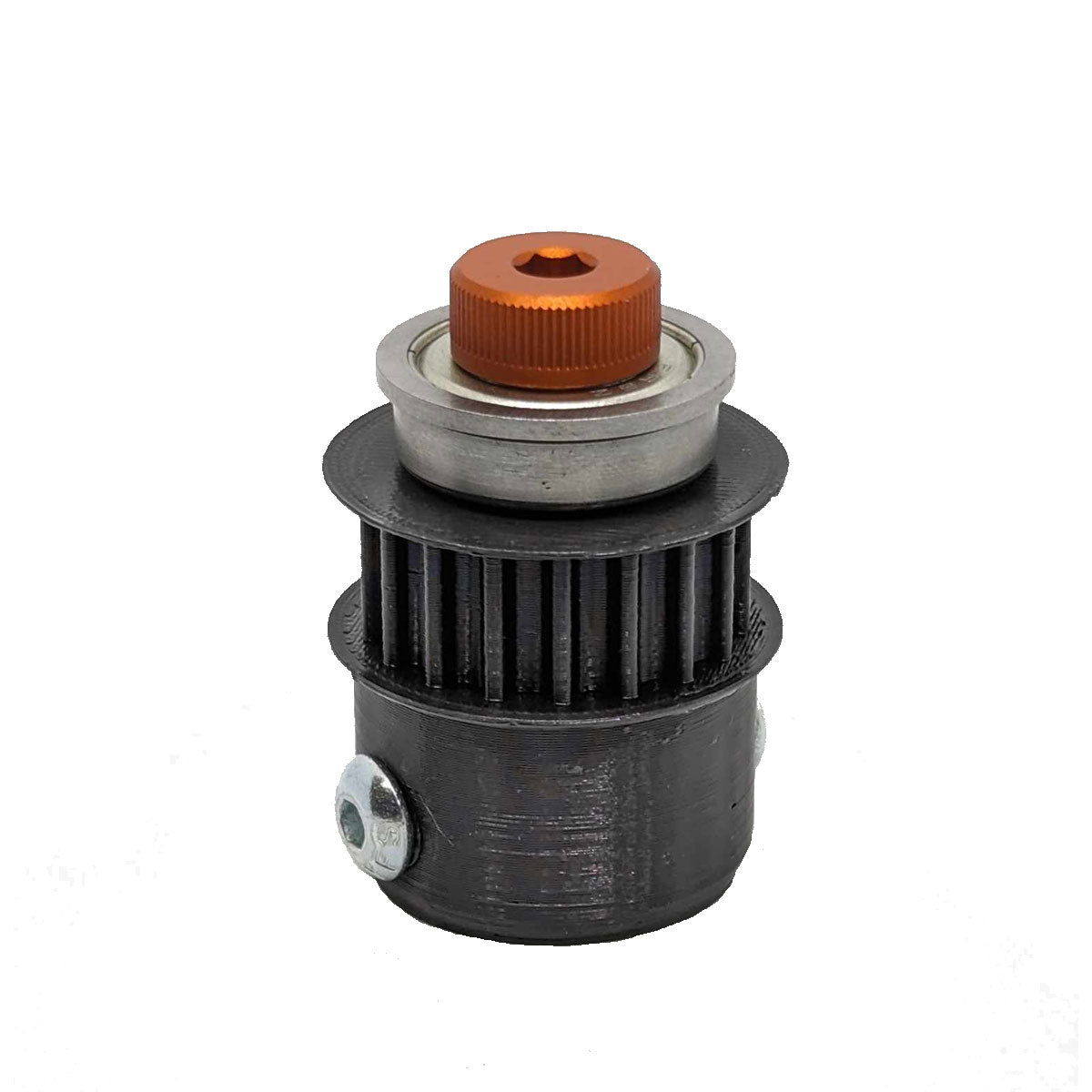

5x RoboRollerz End - 18t Pulley (RB-RR005)
1x RoboRollerz End - Idle (RB-RR006)
6x 3/8" Round Bearing - Flanged
Over 15% Savings
Why RoboRollerz?
The RoboBitz RoboRollerz are a lightweight carbon fiber composite roller system designed specifically for FRC. These rollers are typically 3/4 the weight of comparable products while being less expensive. Lighter, Stronger & Less Expensive? How could you say no?
CAD Downloads:
Notes:
- Some of these items are printed from high quality materials, however due to the nature of 3d printing there may be small blemishes that do not affect the performance of the product.
- Due to the nature of robotics competitions we can not offer a warranty against damaged components. We encourage teams to carefully consider the use case for these products.
- Cutting and finishing a carbon fiber tube can be perfectly safe if you follow some basic safety precautions. We recommend watching this video guide from easycomposites.
Belt Spacing Guide
Belt Spacing Guide
When used with RB-RR005 or any generic 18t 5mm HTD pulleys.
Tooth Count |
Center to Center Distance
|
35 | 1.673 |
45 | 2.657 |
50 | 3.15 |
55 | 3.642 |
60 | 4.134 |
65 | 4.626 |
70 | 5.188 |
75 | 5.61 |
80 | 6.102 |
85 | 6.594 |
90 | 7.087 |
95 | 7.579 |
100 | 8.071 |
105 | 8.536 |
110 | 9.055 |
115 | 9.547 |
120 | 10.039 |
125 | 10.531 |
130 | 11.024 |
135 | 11.516 |
140 | 12.008 |
145 | 12.5 |
150 | 12.992 |
