RoboRollerz End - 18t Pulley
RoboRollerz End - 18t Pulley
SKU:RB-RR005
In stock
Couldn't load pickup availability

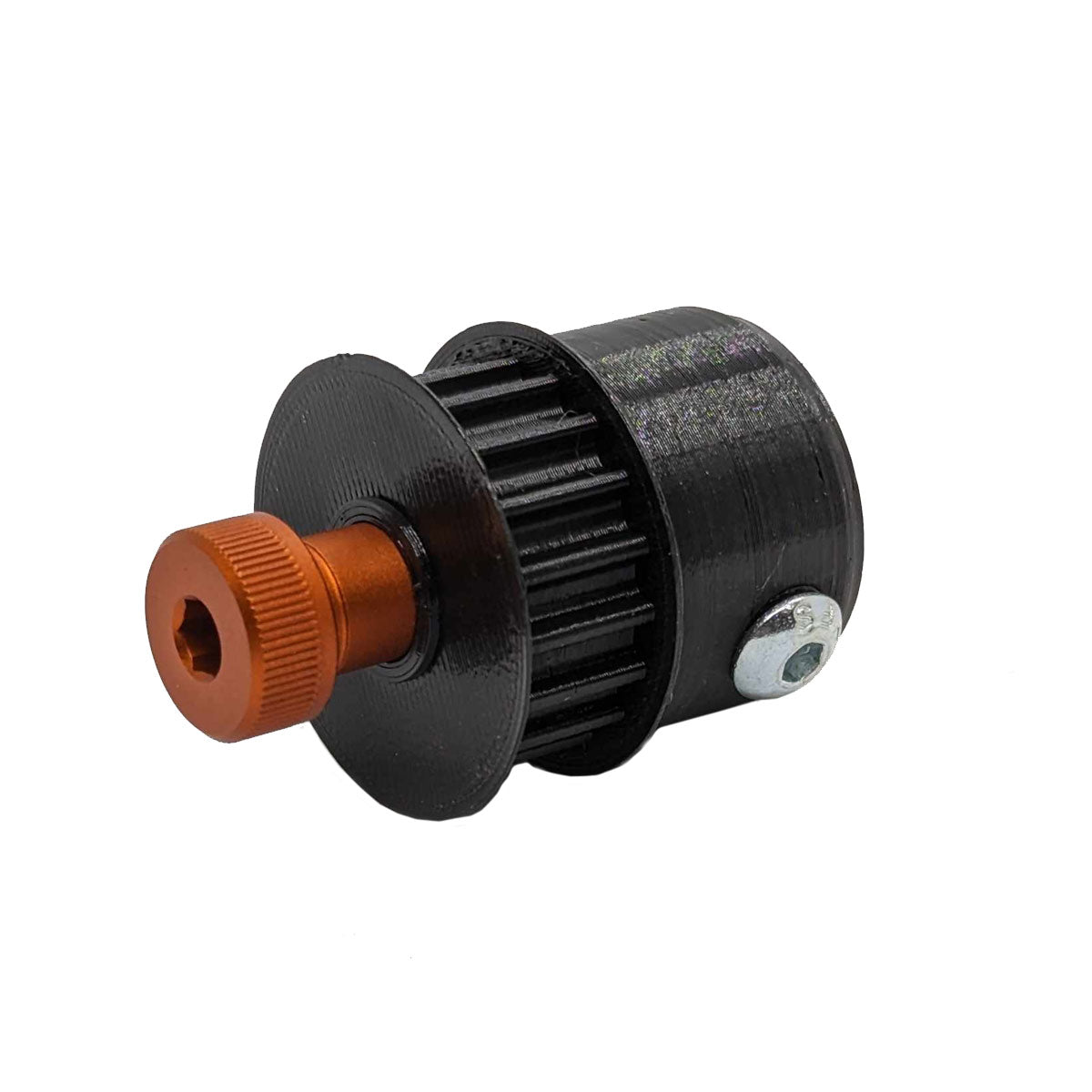

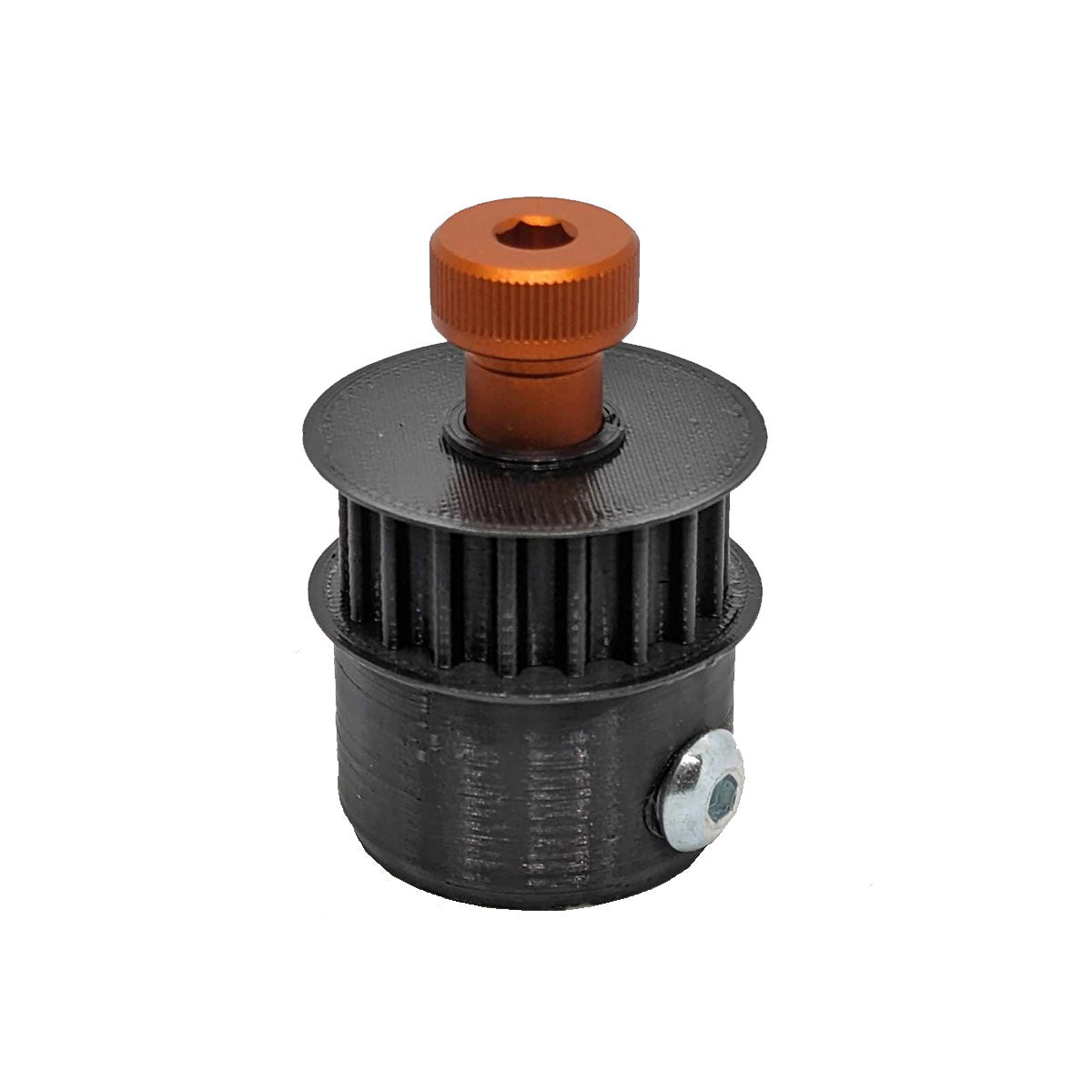

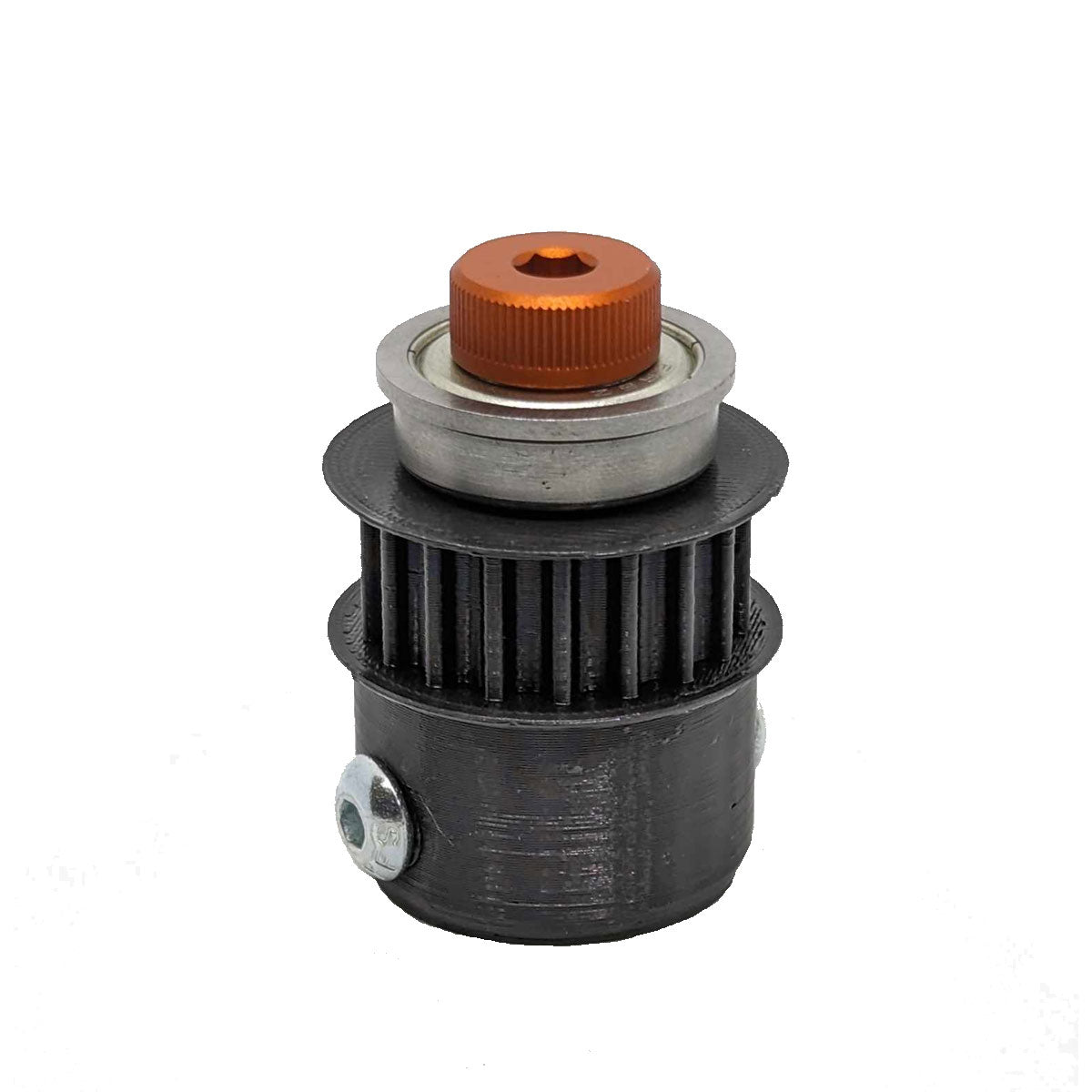

RoboRollerz Roller End - 18T Pulley
Compatible With 9mm HTD Belts
Mounts with 3/8 Round Bearing
Hardware Included - Bearing (FR6-ZZ) not included.
Weight: 31g (+/- 1g)
Designed for Light Load applications,

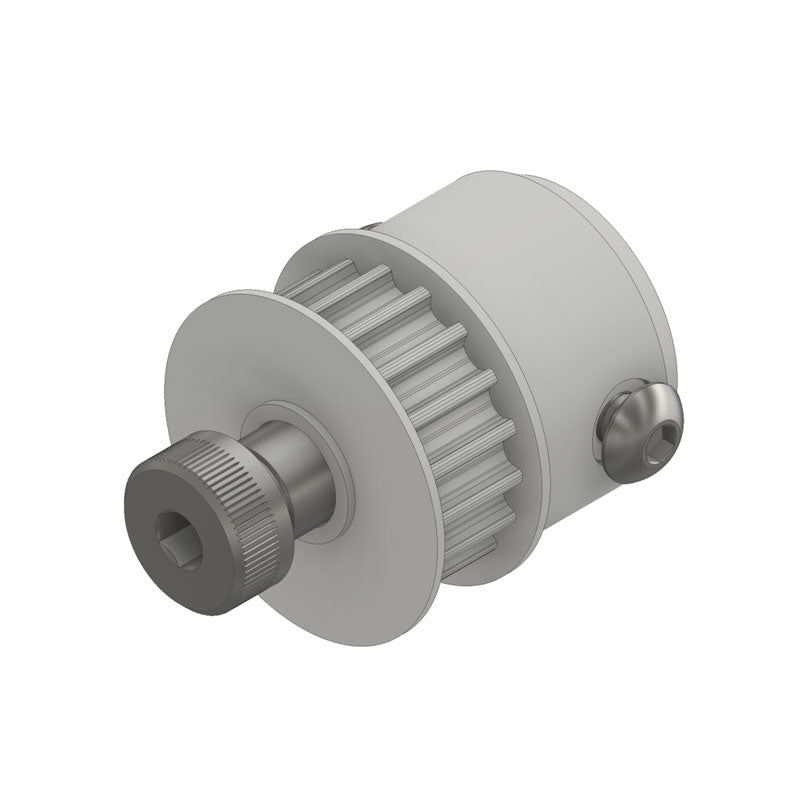

CAD Downloads:
Why RoboRollerz?

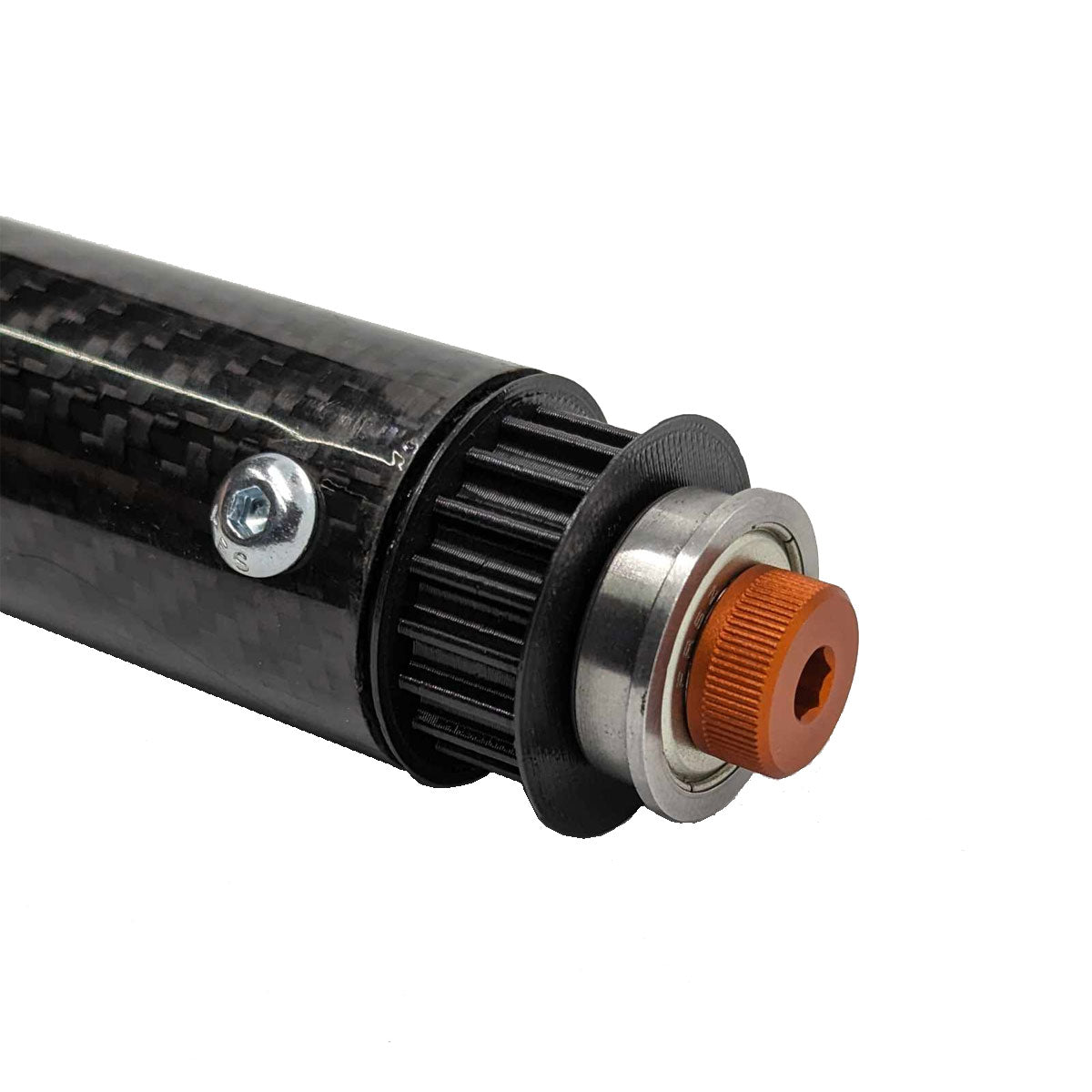

The RoboBitz RoboRollerz are a lightweight carbon fiber composite roller system designed specifically for FRC. These rollers are aggressively lighter than comparable products while being less expensive. Lighter, Stronger & Less Expensive? How could you say no?
Product Installation:
For competition use, we advise using Loctite 422 (McMaster P/N 74985A67) to add additional adherence to the inside of the roller. Apply it inside the roller tube and insert the roller end making sure to line up the mounting holes.
Apply Loctite 242 (McMaster P/N 91458A112) to the #10-32 mounting screws and torque to 15in/lb.
For products RB-RR005 and RB-RR006 apply Loctite 242 (McMaster P/N 91458A112) to the end of the 3/8 shoulder bolt and torque to 20in/lb.
Notes:
- This item is printed from high quality materials, however due to the nature of 3d printing there may be small blemishes that do not affect the performance of the product.
- Due to the nature of robotics competitions we can not offer a warranty against damaged components. We encourage teams to carefully consider the use case for these products.
- *Bearings not Included (But get them here!)
Belt Spacing Guide
Belt Spacing Guide
When used with RB-RR005 or any generic 18t 5mm HTD pulleys.
| Tooth Count |
Center to Center Distance
|
| 35 | 1.673 |
| 45 | 2.657 |
| 50 | 3.15 |
| 55 | 3.642 |
| 60 | 4.134 |
| 65 | 4.626 |
| 70 | 5.188 |
| 75 | 5.61 |
| 80 | 6.102 |
| 85 | 6.594 |
| 90 | 7.087 |
| 95 | 7.579 |
| 100 | 8.071 |
| 105 | 8.536 |
| 110 | 9.055 |
| 115 | 9.547 |
| 120 | 10.039 |
| 125 | 10.531 |
| 130 | 11.024 |
| 135 | 11.516 |
| 140 | 12.008 |
| 145 | 12.5 |
| 150 | 12.992 |
