RoboBitz

RoboRollerz End - 1/2 Hex Blind

RoboRollerz End - 1/2 Hex Blind

SKU:RB-RR003

Regular price $4.99 CAD
Regular price Sale price $4.99 CAD
Sale Sold out

In stock

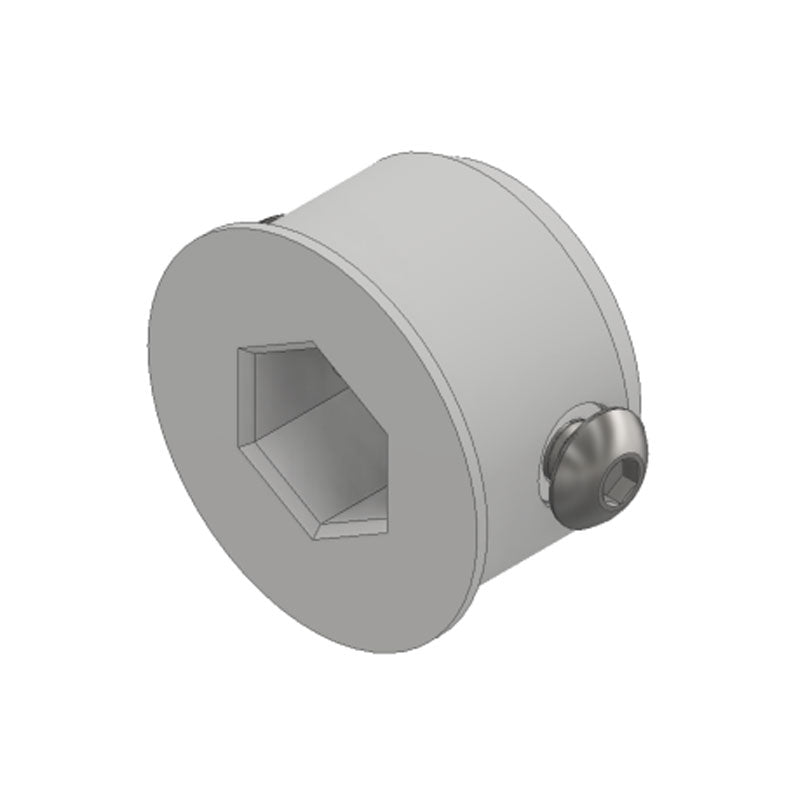

RoboRollerz Roller End - Female Hex 1/2in

Give your team the freedom to drive RoboRollerz as you desire! The RoboRollerz Hex allows you to make custom 1/2" Hex input shafts to meet your teams needs.  This end is designed to hold a short sub shaft,  If you would like to pass a hex shaft through the roller consider RB-RR004

Weight: 11g (+/- 1g)

Designed for Light Load applications.

*Hex Shaft Not Included*

 CAD Downloads:

RoboRollerz



Why RoboRollerz?

The RoboBitz RoboRollerz are a lightweight carbon fiber composite roller system designed specifically for FRC. These rollers are aggressively lighter than comparable products while being less expensive. Lighter, Stronger & Less Expensive? How could you say no?



Product Installation:

For competition use, we advise using Loctite 422 (McMaster P/N 74985A67to add additional adherence to the inside of the roller.  Apply it inside the roller tube and insert the roller end making sure to line up the mounting holes.

Apply Loctite 242 (McMaster P/N 91458A112) to the #10-32 mounting screws and torque to 15in/lb.

For products RB-RR005 and RB-RR006 apply Loctite 242 (McMaster P/N 91458A112) to the end of the 3/8 shoulder bolt and torque to 20in/lb.



Notes:

  • This item is printed from high quality materials, however due to the nature of 3d printing there may be small blemishes that do not affect the performance of the product.
  • Due to the nature of robotics competitions we can not offer a warranty against damaged components. We encourage teams to carefully consider the use case for these products.


Belt Spacing Guide

When used with RB-RR005 or any generic 18t 5mm HTD pulleys.

Tooth Count
Center to Center Distance
35 1.673
45 2.657
50 3.15
55 3.642
60 4.134
65 4.626
70 5.188
75 5.61
80 6.102
85 6.594
90 7.087
95 7.579
100 8.071
105 8.536
110 9.055
115 9.547
120 10.039
125 10.531
130 11.024
135 11.516
140 12.008
145 12.5
150 12.992
